Case CX250E

Case CX250E

Case 250E

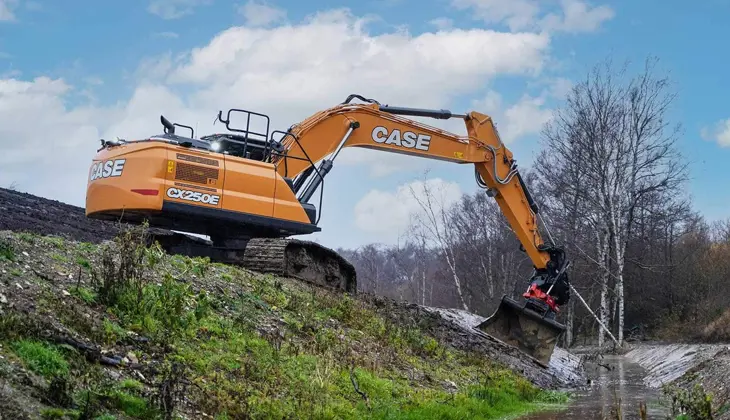

The CX250E crawler excavator is part of the CASE E-Series. The 25 ton digger uses an FPT NEF6 engine that can power up to 133.4 kW at 2000 min-1 and has an operating weight of up to 25.5t.


Like all new-gen CASE Equipment, the CX250E crawler excavator is compatible with the CASE SiteConnect module, that can be used for interactive maintenance, and for operators to seek remote assistance.The CX250E crawler excavator makes for a popular choice in urban, infrastructure, and  recycling job sites for its reliability, unbeatable speed vs control ratio, outstanding comfort and low fuel consumption. The upgraded upper carrier rollers on the CX250E give it greater durability. Designed with the wellness of operators in mind, the E-Series crawler excavators help increase overall productivity through comfortable working conditions for the operators.

  • FPT NEF 6-cylinder turbo-charged diesel
  • Stage V
  • Selective Catalytic Reduction on Filter (SCRoF)
  • Diesel Oxidation Catalyst (DOC)
  • EGR-free
  • VGT turbocharger
  • Electronic fuel injection
  • High pressure common rail system
  • Neutral safety start
  • Auto engine warm up, emergency stop
  • Glow-plug pre-heat
  • EPF (Engine Protection Feature)
  • Dual-stage fuel filtration
  • Dual element air filter
  • Remote oil filter
  • Green plug oil drain
  • 1,000 hour engine oil and fuel filters change interval
  • 24-volt system
  • Battery disconnect switch
  • High ambient temperature cooling package
  • External fuel and AdBlue gauges
  • Fuel cooler
  • Fuel filter + fuel prefilter with water accumulation indicator
  • Fuel shut-off valve
  • Idle start
  • Radiator, oil cooler, intercooler – protective screen
  • Refueling pump
  • Eco mode
  • Auto idle
  • One-touch idle
  • Idle shutdown
  • Pump Torque Control (PTC)
  • Boom Economy Control (BEC)
  • Swing Relief Control (SRF)
  • Spool Stroke Control (SSC)
  • Boom Oil Regeneration (BOR)
  • Hydraulic flow control balance
  • Electronically controlled hydraulic pumps
  • Auto power boost
  • Auto travel speed change
  • 4 selectable work modes
  • Overload warning device
  • ISO pattern controls
  • Pre-set auxiliary pump settings
  • Switch controlled auxiliary selection
  • Auxiliary valve
  • Hydraulic filter restriction indicator
  • Oil cooler
  • 5,000 hour hydraulic oil change interval
  • 2,000 hour hydraulic filter change interval
  • Hydraulic quick coupler provision
  • Hydraulic fluid supply port with air breather
  • ISO mirrors
  • Handrail – RH access
  • ISO guard rails
  • Isolation mounted cab (fluid and spring)
  • Lifting eyes for counterweight
  • Lockable fuel cap, service doors and toolbox
  • Rear and side view safety camera
  • ROPS protection
  • FOPS guard OPG level 2
  • Pressurized cab
  • Tempered safety glass
  • One-touch lock front window
  • Sun visor & rain deflector
  • A/C, heating and defrosting with automatic control
  • Luch box & cool box, cup holders & ashtray
  • Interior dome light
  • Multi-adjustable low frequency air suspension console and tiltable seat with air springs and double acting hydraulic damper
  • Sliding seat – 90 mm
  • Seat belt with fasten detection
  • Adjustable armrests
  • Low-effort joystick controls
  • Sliding cockpit - 80 mm
  • Auxiliary select system
  • Aux-in port for personal electronics
  • Multifunction LED color monitor (10”), with silicon switches
  • 22 selectable languages for monitor
  • Anti-theft system (start code system)
  • Split type floor mat
  • 12-volt electric socket
  • 24-volt cigarette lighter
  • One-piece right hand window
  • 4 halogen work lights (2 cab roof, 1 LH boom, 1 toolbox)
  • Windshield wiper / washer
  • Clear (Lexan) roof window with sunshade
  • Storage compartments
  • On-board diagnostic system
  • Standard boom 5.85 m [CX250E] or 6.15 m [CX300E]
  • Long reach boom 10.3 m [CX250E Long Reach]
  • Arm 3.00 m [CX250E] or 3.18 m [CX300E]
  • Long reach arm 8.0 m [CX250E Long Reach]
  • Attachment types and names storable in the display
  • 600 mm steel triple grouser shoes
  • Full overlap turntable bearing tub
  • Sealed link chain
  • Lashing points
  • SiteConnect module and 3 years advanced SiteWatch subscription with remote monitoring

For more information and details on this model, please visit:

Please get in touch with us for further information and prices.

A 25 tonne excavator for sale that promises efficient productivity, enhanced versatility, cleaner power, comfortable and safer operations, and easy maintenance
